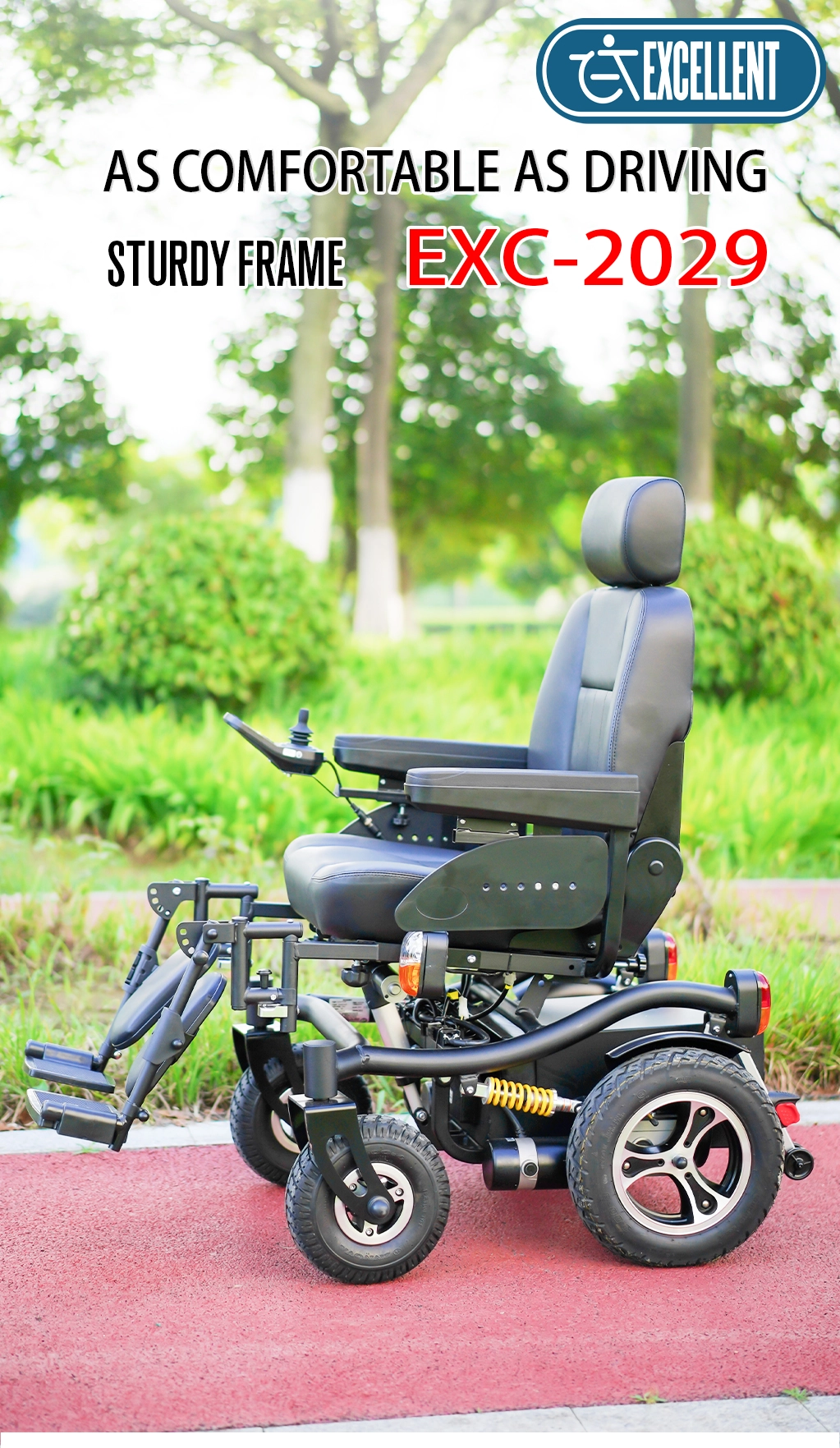

Heavy Duty Electric Wheelchair Dual 340W Motor Car Grade Seat CE Certified
Product Introduction
Our EXC-2029 heavy duty electric wheelchair is a professional mobility solution designed exclusively for medical institutions elderly care homes rehabilitation clinics and wheelchair wholesale dealers. Unlike lightweight consumer models this unit features high strength integrated steel frame with full hydraulic shock absorption system to withstand frequent daily institutional use. Every component from drive motors to seating structure is reinforced to support maximum 125KG user load, meeting long term high frequency service demand of care facilities.

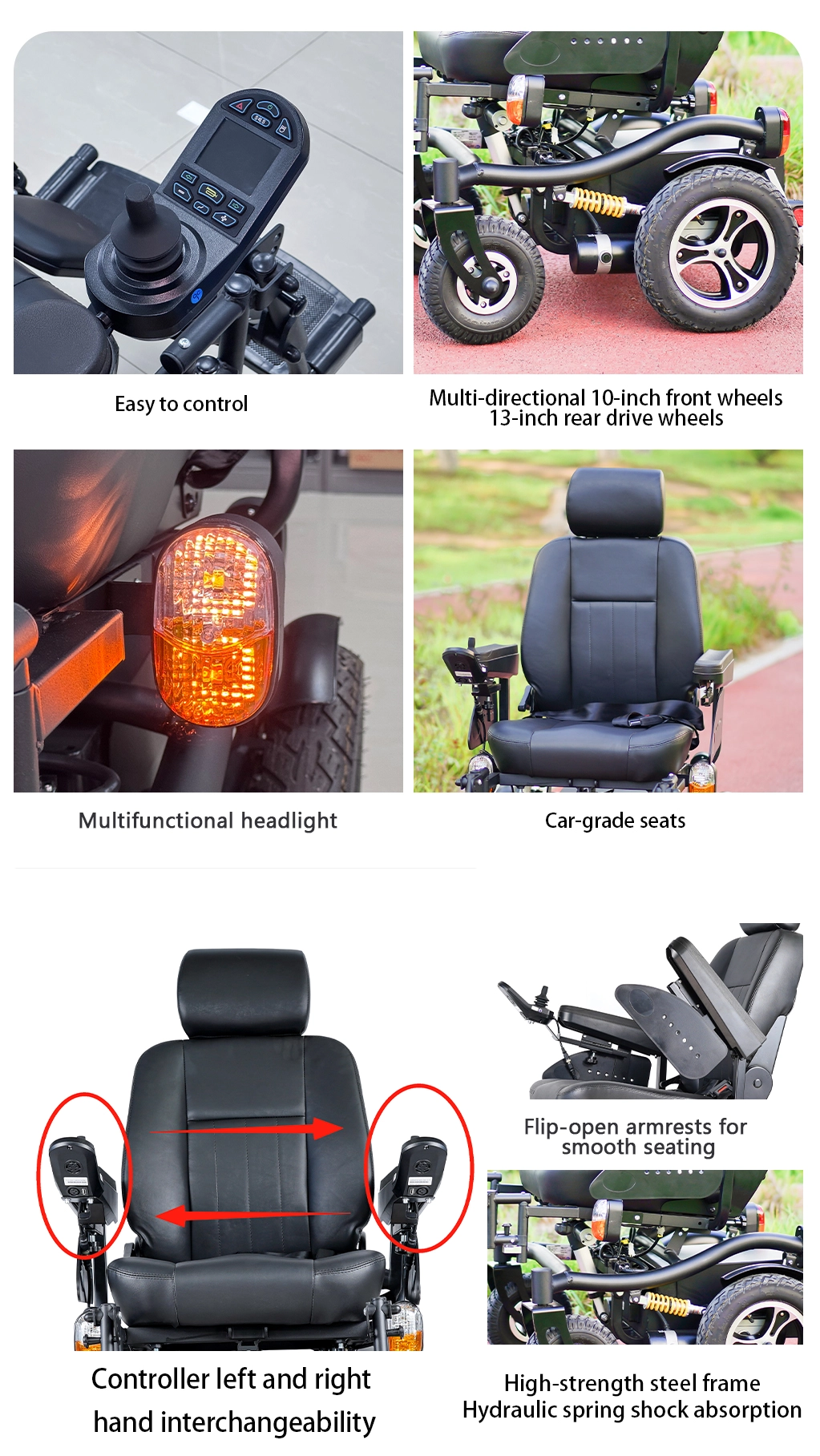

Core user friendly design points simplify nursing workflow: left and right hand interchangeable joystick controller adapts to all patients regardless of limb mobility condition; flip open armrests allow easy patient transfer from bed or stretcher; car grade thick leather seat with headrest eliminates fatigue during all day sitting. The complete multi functional front and rear light set improves safety during outdoor and night patrol transport in community care scenes.

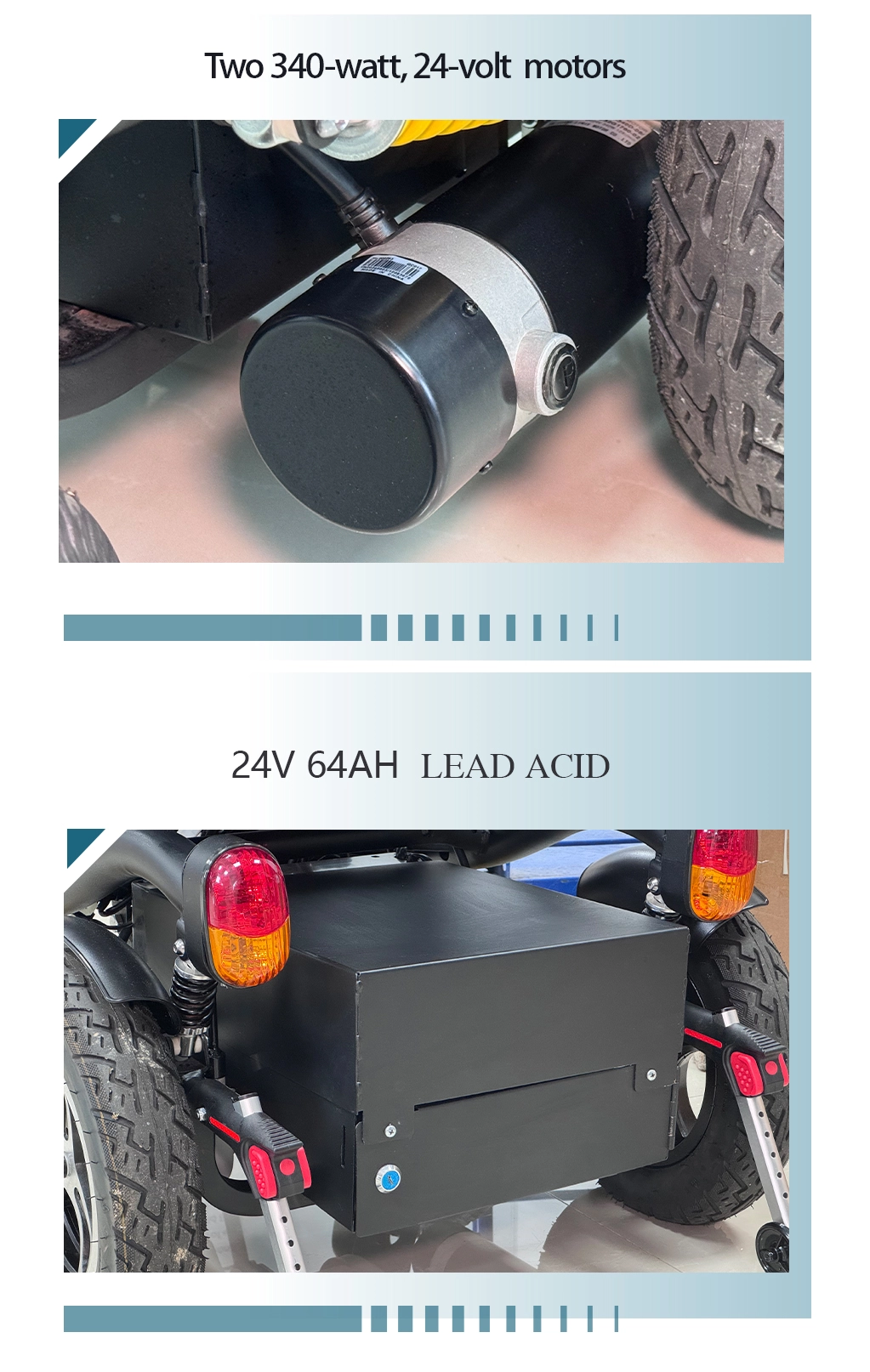

Power performance stands out among peer institutional wheelchairs. Two 24V 340W brush drive motors generate stable climbing power to pass 120mm obstacles and handle 6 degree slopes smoothly. Matched with 24V 64AH lead acid battery, the wheelchair reaches 38KM single charge endurance to cover full day facility outdoor transfer tasks. 10 inch omnidirectional front wheels and 13 inch rear drive wheels balance indoor turning flexibility and outdoor road adaption, with only 850mm turning radius for narrow ward corridor movement.

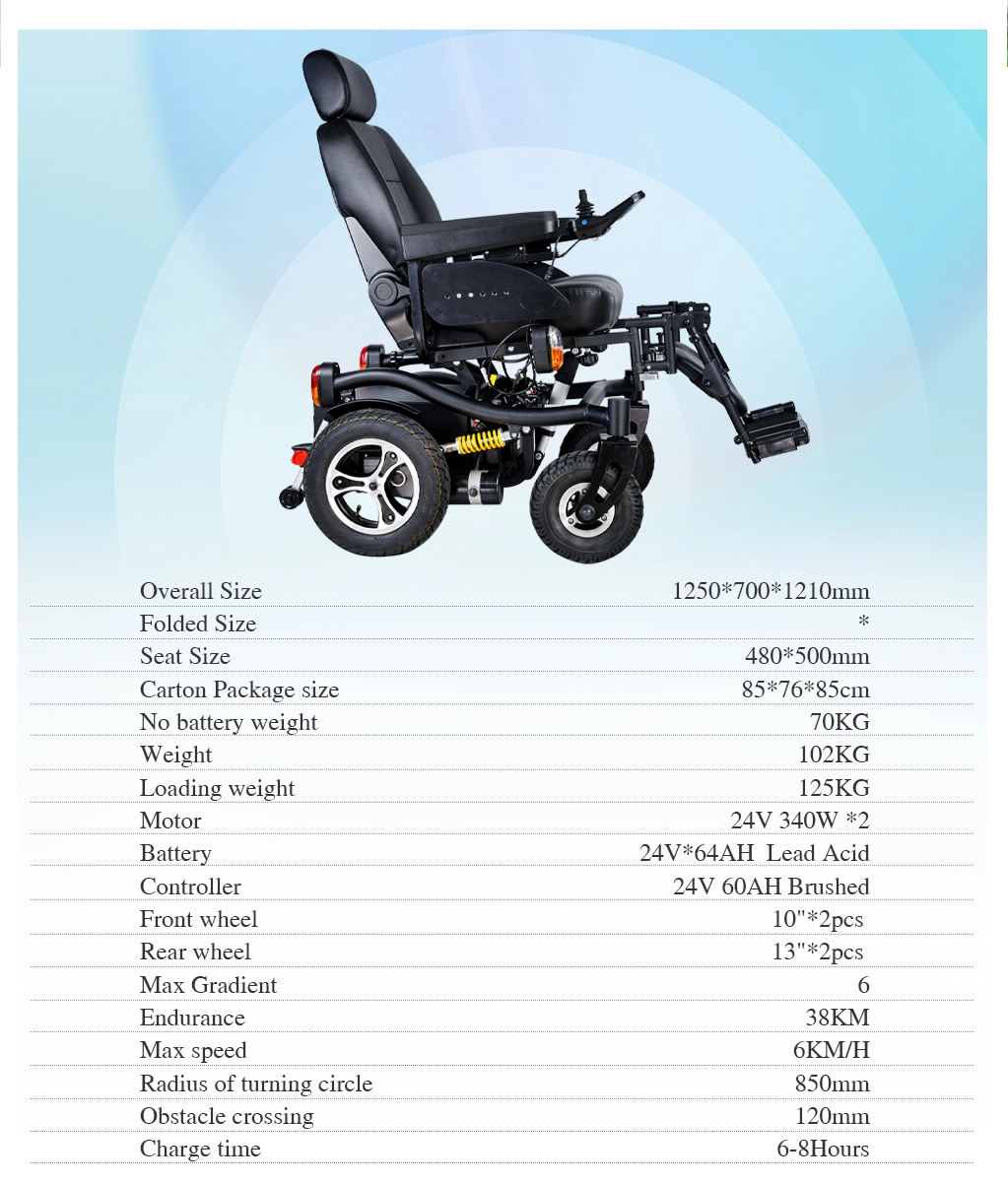

Full Technical Parameter Table
| Specification Item | Detailed Data |
|---|---|
| Overall Dimension | 12507001210mm |
| Seat Size | 480*500mm |
| Export Carton Outer Size | 857685cm |
| Net Weight Without Battery | 70KG |
| Full Machine Weight With Battery | 102KG |
| Max Safe Loading Weight | 125KG |
| Drive Motor Configuration | Dual 24V 340W Brush Motors |
| Standard Battery Pack | 24V 64AH Lead Acid Battery |
| Matching Controller | 24V 60AH Brushed Joystick Controller |
| Front Wheel Spec | 10 Inch 2 Pieces |
| Rear Drive Wheel Spec | 13 Inch 2 Pieces |
| Max Climbing Gradient | 6 Degree |
| Single Charge Endurance Range | 38KM |
| Top Travel Speed | 6KM Per Hour |
| Minimum Turning Radius | 850mm |
| Max Passable Obstacle Height | 120mm |
| Full Battery Charging Duration | 6 To 8 Hours |
Why Choose Us
- Institutional Reinforced Structure For Bulk Order All wheelchairs use thickened high strength steel frame and reinforced suspension parts, customized to resist daily high frequency use in nursing hospitals. We support large batch wholesale orders with stable stock supply for global distributors.
- Flexible Customization For Facility Demand We offer adjustable seat accessories, battery capacity upgrades and logo printing service for chain senior care groups. Left right interchangeable controller design cuts separate stock pressure for dealers selling to mixed mobility patients.
- Superior Power And Long Service Life Dual 340W high torque motors and large 64AH lead acid battery deliver longer driving range than standard commercial wheelchairs, reducing frequent charging work load for care center staff and lowering post sale maintenance cost for distributors.
- Complete Safety Configuration Standard full set signal headlights, rear warning lamps and safety seat belt come with every unit, fully complying with medical mobility equipment safety standards required by overseas medical institutions.
- Professional After Sales Support For B Partners Global spare parts supply channel and dedicated technical team provide operation training for distributor sales teams and nursing facility maintenance staff, long term technical guidance for bulk purchasers.
FAQ
- Q Is this wheelchair suitable for long term use in nursing homes and rehabilitation centers A Yes. This heavy duty model is developed for institutional high frequency daily transport. Reinforced frame, thick car grade seat and durable motor system extend service cycle and reduce frequent repair cost for care facilities.
- Q Can the joystick controller switch between left hand and right hand installation A Absolutely. The controller bracket supports free left and right side swap without extra tools, matching patients with left limb mobility impairment or right side limited movement.
- Q What bulk order support do you provide for wheelchair distributors A We offer competitive tiered wholesale pricing based on order quantity, stable monthly production capacity and mixed container loading with other mobility aid products. Custom packaging and brand marking service are available for authorized dealers.
- Q How far can the wheelchair travel after one full battery charge A Equipped with standard 24V 64AH lead acid battery, the maximum endurance reaches 38KM, fully meeting all day indoor ward transfer and outdoor community outing demand of senior care institutions.
- Q What certification does this heavy duty electric wheelchair hold for medical facility import A The product passes CE medical mobility equipment certification, meets import standard requirements for European medical institutions and rehabilitation equipment dealers.
- Q What is the maximum weight the wheelchair can safely carry A The rated maximum loading capacity is 125KG, covering most adult user groups in rehabilitation and elderly care scenarios.
