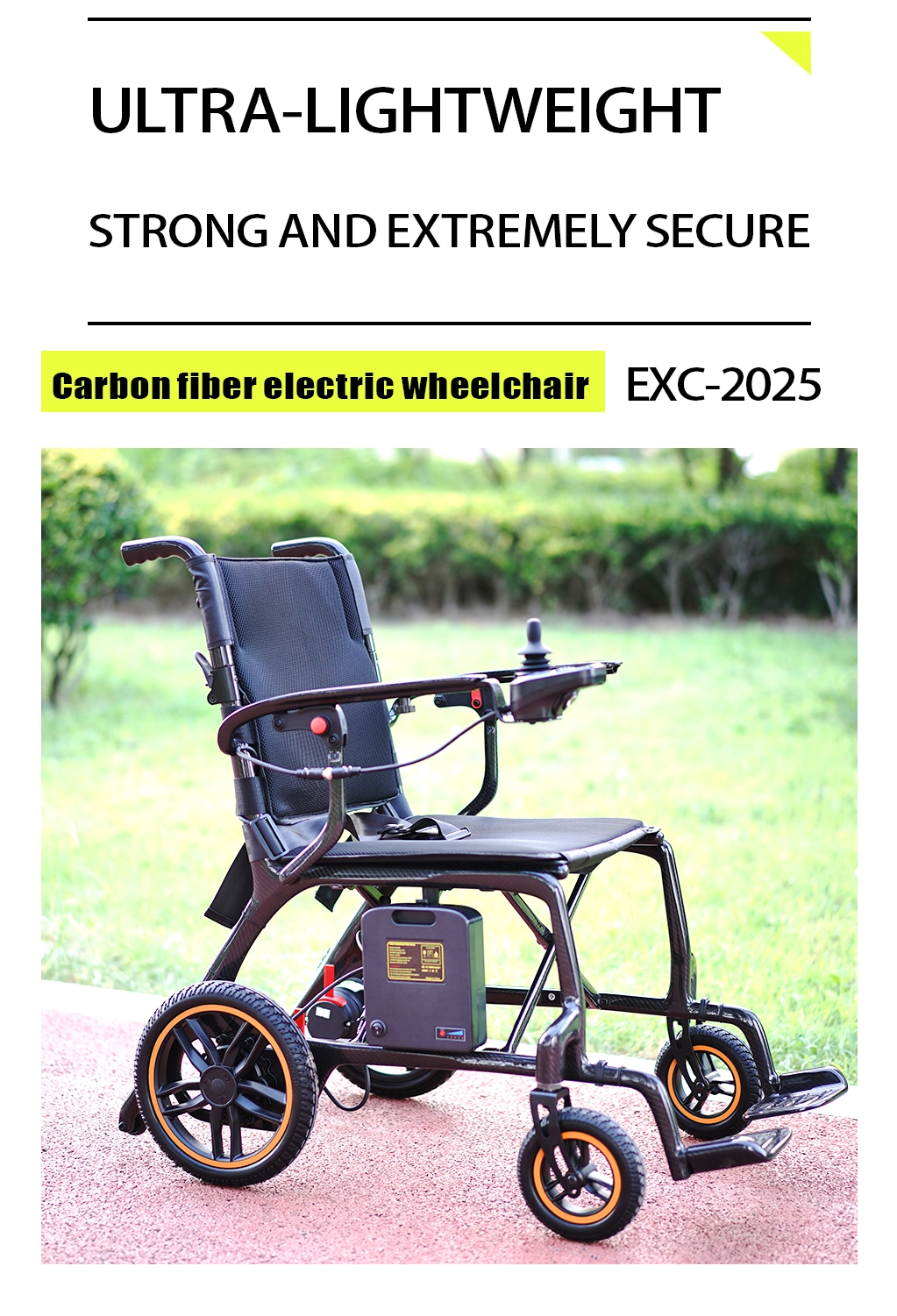

Carbon Fiber Folding Electric Wheelchair, Ultra Light 13KG, CE ISO Certified Medical Mobility Aid

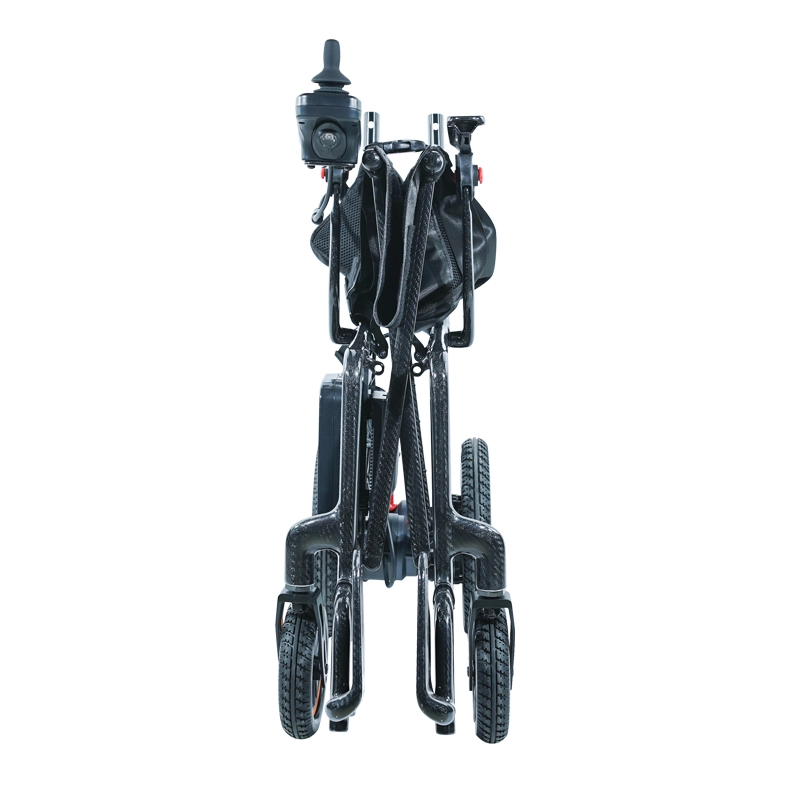

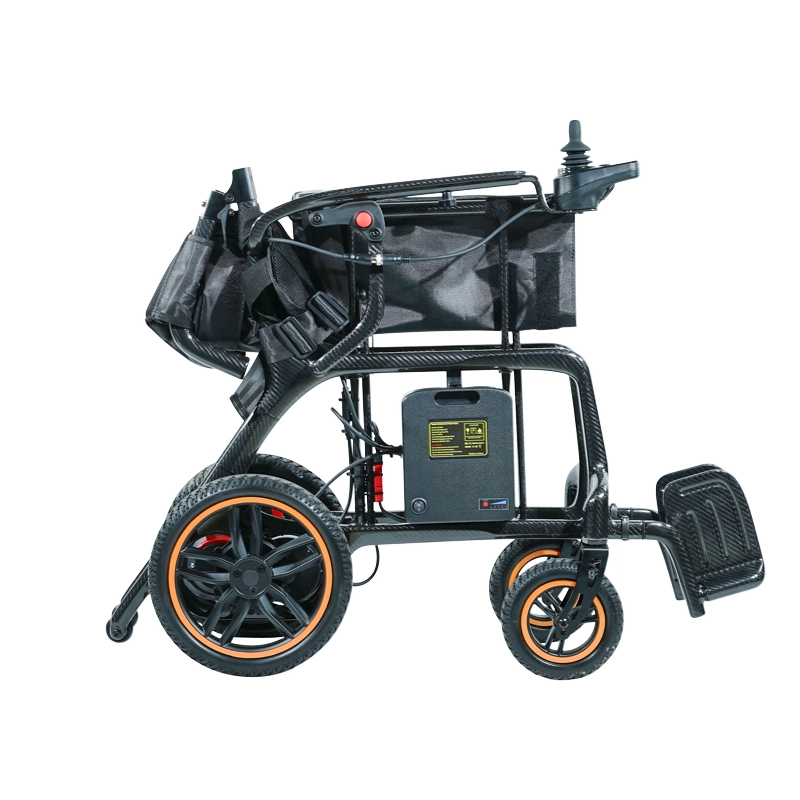

Our carbon fiber folding electric wheelchair is specially developed for institutional bulk buyers including hospitals, rehabilitation centers, nursing homes and mobility equipment distributors. We cut total unit weight down to only 13kg with high strength carbon fiber frame, solving the heavy transport trouble that most medical wheelchairs have. The whole unit folds flat in seconds to fit car trunks and aircraft luggage space, lowering storage and delivery cost for your business.

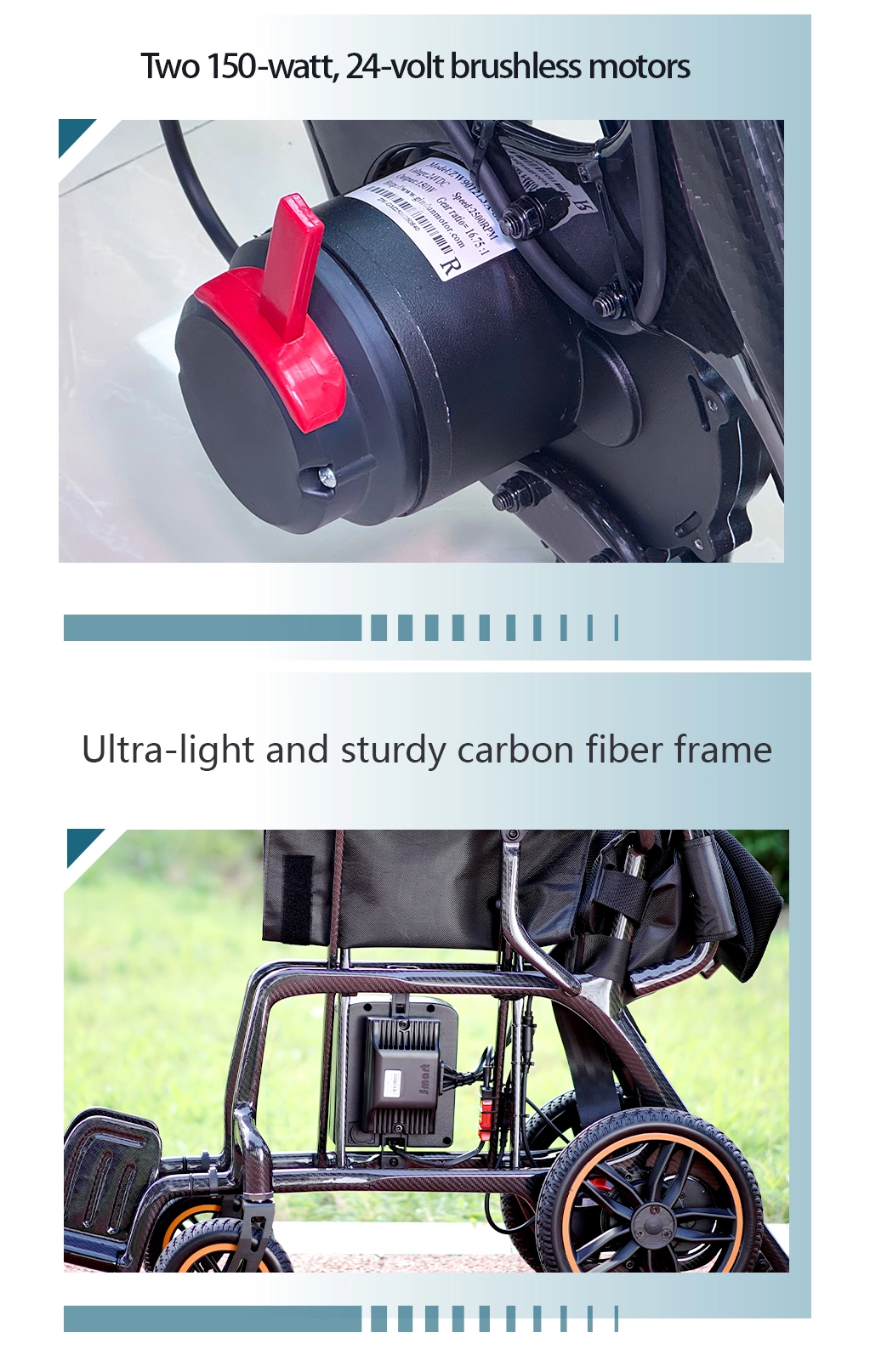

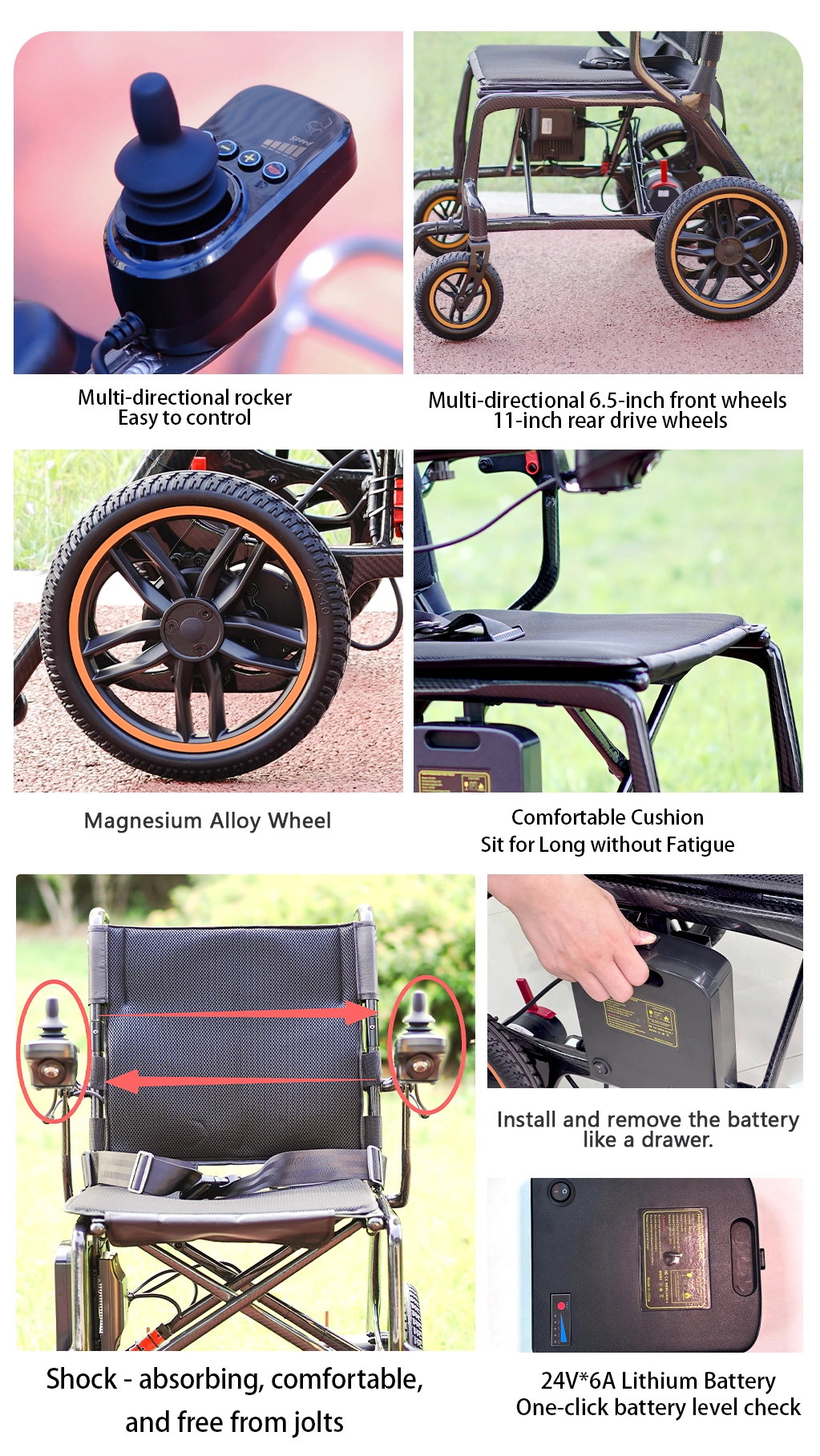

All core drive parts adopt dual 150W 24V brushless motors with stable output power, matching magnesium alloy wheels for smooth indoor and outdoor movement. The drawer style lithium battery supports one click power check and quick disassembly, which meets airline transport standards for cross border wholesale orders. Shock absorbing backrest and thick breathable cushion relieve fatigue for long time users, making this model a high repurchase product for your medical retail and institutional supply business.

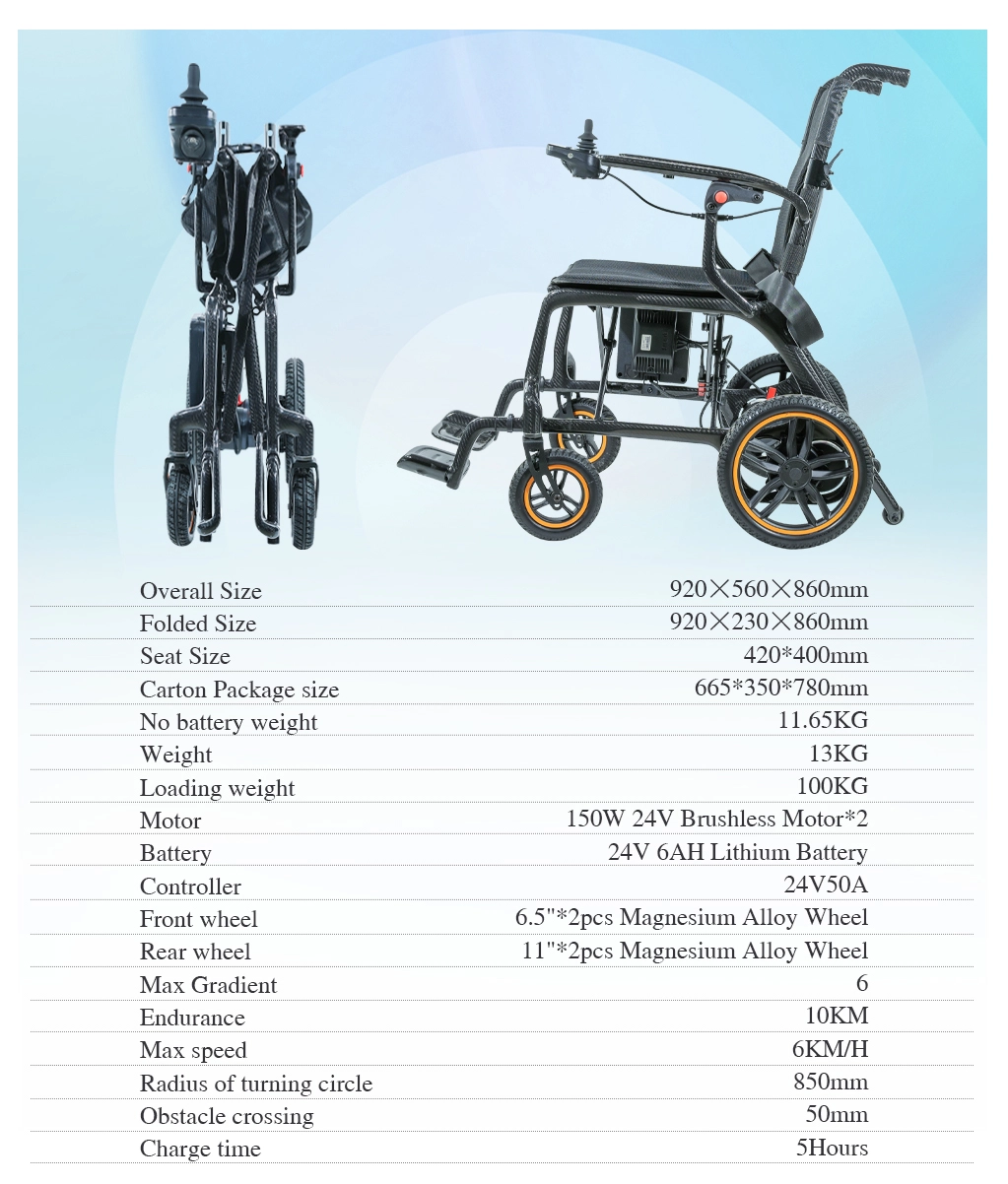

Full Specification List
| Item | Specific Parameter |
|---|---|
| Overall Size | 920×560×860mm |
| Folded Size | 920×230×860mm |
| Seat Dimension | 420×400mm |
| Export Carton Size | 665×350×780mm |
| Weight Without Battery | 11.65KG |
| Full Unit Weight | 13KG |
| Max Loading Capacity | 100KG |
| Motor Configuration | Two 150W 24V Brushless Motors |
| Lithium Battery | 24V 6AH Detachable Drawer Battery |
| Controller Model | 24V50A Multi Function Joystick Controller |
| Front Wheel | 6.5 Inch Magnesium Alloy Wheels, 2 Pieces |
| Rear Drive Wheel | 11 Inch Magnesium Alloy Wheels, 2 Pieces |
| Max Climbing Gradient | 6 Degree |
| Single Full Charge Range | 10KM |
| Maximum Driving Speed | 6KM Per Hour |
| Turning Circle Radius | 850mm |
| Max Obstacle Crossing Height | 50mm |
| Full Charging Time | 5 Hours |
FAQ
- Can this wheelchair pass EU medical import inspection? Yes, all production lines follow CE ISO medical standards, complete certification documents will be provided together with bulk shipment for your customs clearance.

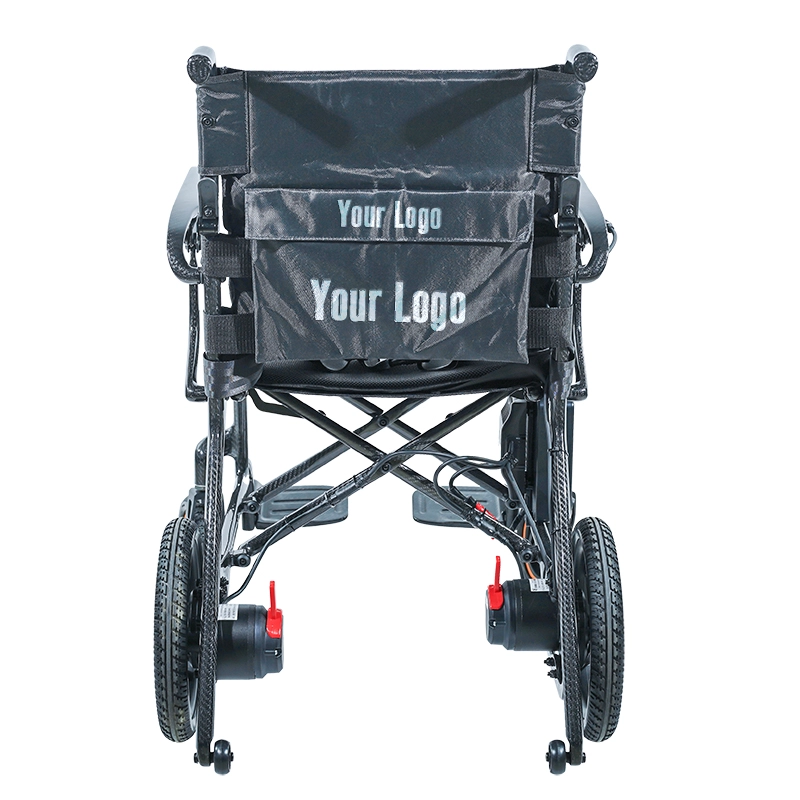

- Is custom service available for institutional bulk orders? We support brand logo printing, packaging mark customization and fabric color adjustment for large orders from hospitals and nursing home chains.
- Can we separate the lithium battery for air freight shipping? The drawer type battery can be fully detached easily, complying with airline transport rules for cross border wholesale delivery.
- What is the minimum order quantity for distributors? We offer flexible MOQ terms for new global dealers, contact our sales team to get exclusive bulk wholesale price list.
- Does the unit come with full spare parts for after sales maintenance? Every bulk order includes basic wearing spare parts, and we supply long term spare parts support for all cooperative institutional clients.
Why Choose Us
- Professional medical mobility equipment factory with stable mass production capacity, we keep sufficient stock to cover large orders from hospitals and chain nursing homes without long waiting time.
- Complete medical certification system for carbon fiber electric wheelchairs, our document set can help buyers clear customs in most European and Southeast Asian countries without extra inspection fees.
- One stop custom solution for B end partners, including brand printing, customized outer carton and exclusive shipping mark to help you build your own local mobility equipment brand.
- Dedicated after sales team for global distributors, we provide remote maintenance guidance and long term spare parts supply to reduce your post sale operation cost.
- Strict raw material inspection on carbon fiber frames and brushless motors, each finished wheelchair goes through multi round testing before shipment to lower return rate for your wholesale business.
