EXC-1003B Auto-Fold Mobility Scooter: Commercial-Grade Steel Frame

Technical Excellence for Commercial Operations

The EXC-1003B redefines facility mobility with its patented auto-fold mobility scooter system. The steering column retracts in 3 seconds, achieving 75cm compactness – ideal for high-utilization environments requiring storage efficiency.

Key B2B Advantages:

• Hybrid Wheelchair Integration: Modular 360° swivel seats and retractable footplates accelerate patient transfers (EN 12184 compliant)

• Ruggedized Terrain Performance: Aerospace-grade aluminum honeycomb panels absorb 40% vibration, enabling all-weather operation across campuses

• Sterilization-Ready Construction: UV-resistant ABS housing tolerates clinical disinfectants

• Hot-Swappable Power: 24V/48V battery interoperability extends daily range to 25km

  PRODUCT SPECIFICATIONS

  Category	Technical Details
  Model	EXC-1003B Foldable Mobility Scooter

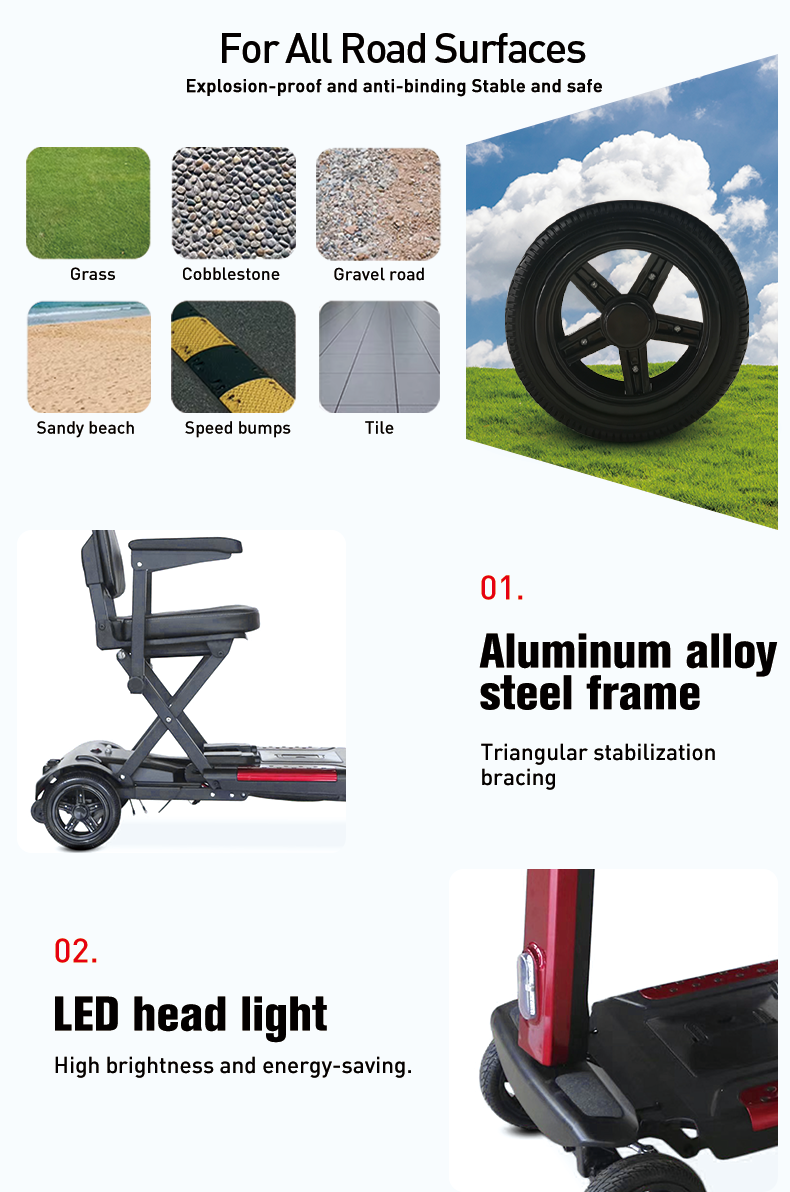

  Frame	Reinforced steel with IP65 coating

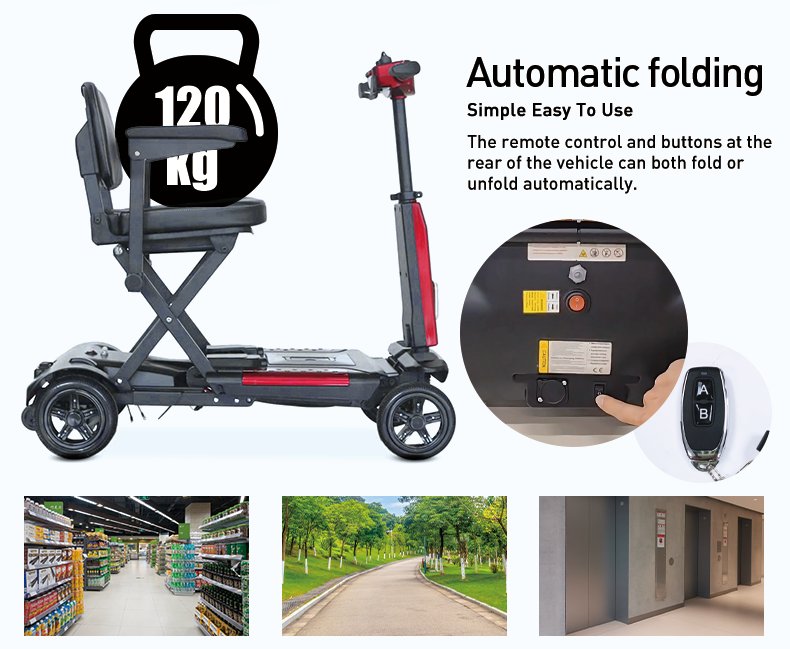

  Folding Mechanism	Auto-retract steering (75cm stored width)
  Motors	Dual 300W brushless (10° incline at 4km/h)

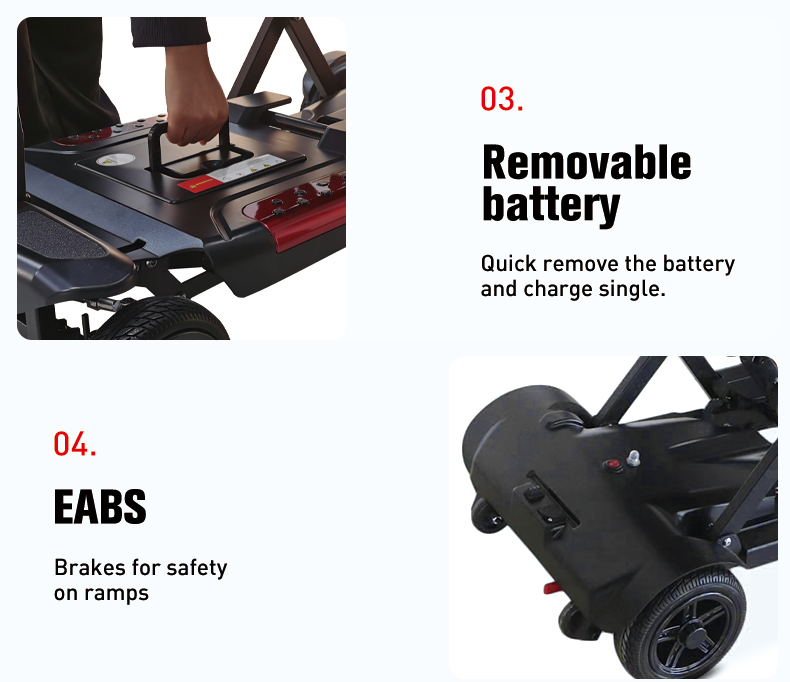

  Battery System	24V 12Ah lithium (hot-swappable)
  Max Load	100kg (150kg dynamic-tested)
  Speed	6km/h governed (ANSI/RESNA compliant)

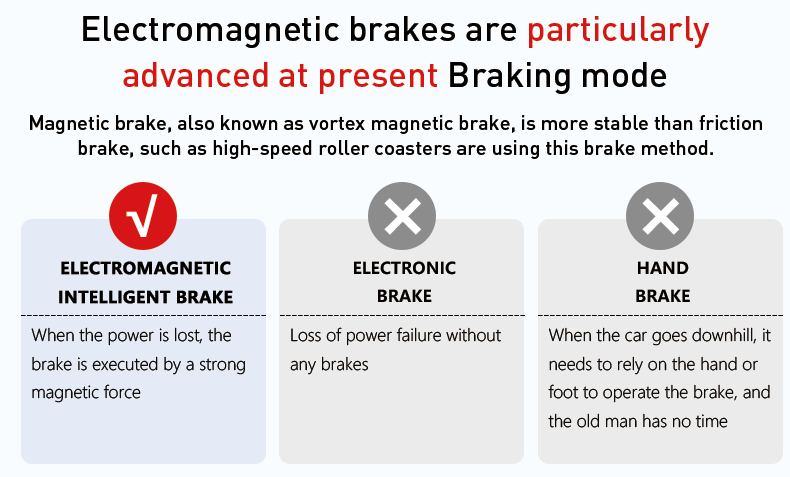

  Braking Response	0.3s emergency stop (TÜV-certified)
  Charging Time	6 hours standard
  Certifications	CE/FCC/ISO/ANSI/RESNA










  Institutional Applications

  Healthcare Facilities

  • Patient transport between departments

  • Rehabilitation training with wheelchair-scooter transition mode

  Senior Living Communities

  • Safe navigation through multi-story buildings

  • Garden pathway access with shock-absorbing footplates

  Urban Mobility Services

  • Public transit integration via lightweight (58kg) portable design

  • Sidewalk traversal with anti-slip brake system

    Customization Options

    • Oxygen tank/IV pole mounting brackets

    • Voice-command interfaces (Bluetooth 5.0)

    • Dynamic/PG controller compatibility

    • RFID access control systems

    • Fleet management GPS tracking

    Service Package: 2-year motor warranty + 30-country support network. Bulk order discounts available.
